ST-2150D Soldering Iron
Compatible with various type of solderingtools, utility model with multiple functions.
Max Power is 150W. Big silicone buttons operate comfortable and reliable. All kinds of parameter data and information in the form of graphics display. Can automatically recognize the soldering tools and upload the corresponding parameters. Provide 3 groups shortcut temperature to simplify operations.
Features

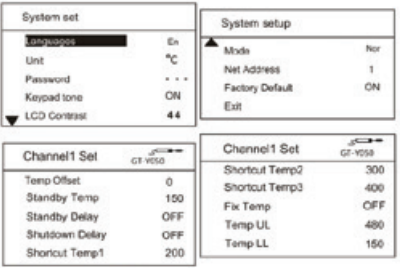

Easy temperature setting. Short press “MENU” to select setting channel, then press “UP”/“DOWN” key to adjust the temperature. Quick call short-cut temperature Short press “MENU” to select setting channel, then short press key 1/2/3 to quickly call the set temperature. Long press key 1/3 to turn on/off channel 1/2. User-friendly menu enables system setting easier. Support Chinese/English, / , Password, Keypad tone, Temp offset, Standby temperature, Standby/Shutdown delay, Shortcut/Fix temp, Ceiling/Lower limit temperature setting.
PC Software Control System
The PC software can be used under the following operating system: win XP, win 7 Software interface included 4 functions modules 1.Communication module: display product model, communication mode, net address, communication port, etc.
2.Parameter setting module display product parameter setting and the real-time parameter information.
3.Info tip module including errors, important operating hints, etc.
4.Real-time temperature curve display module: display real-time temperature curve of each channel and curve data of saved temperature.
| Specifications | |
|---|---|
| Model | GT-6150P |
| Input Voltage | AC 220-240V~50/60Hz（AC 110-120V~60Hz） |
| Rated Power | 150W±10 |
| Temperature range | 80 ~500 /176 ~932 |
| Temperature Compensation | ±50 (±90 ) |
| Temperature adjustment | Long press for quick adjustment, short press to adjust in increments of 1 unit |
| Quick Parameters | Supports customization of 10 sets of quick parameterst |
| Temperature Lock | Supported |
| Electrostatic Crounding | Supported |
| USB Firmware Upgrade | Supported |
| Communication Interface | RS485 |
| Sleep Delay | Adjustable from 0 to 60 minutes (can be disabled, default is 15 minutes) |
| Language | Supports Chinese and English interfaces |
| Display | TFT color screen |
| Operating Environment | 0 ~40 , Humidity <85%RH |
| Weight(Main Unit) | ≈3.2 kg |
| Temperature Unit | ±50 /±90 |
