GT-5200P Multifunctional Desoldering Station
Compatible with various types of soldering tools, support replacinghandles and tweezers between 50W to 150W.
Using integrated soldering tips, rapid heating. Pluggable heater design, easy to replace. Silicone buttons operate comfortable. Auto standby and sleep funtion, conserves energy and protect equipment. Password-protected function to preserve settings. Built-in RS485 communication interface, support computer control.
Features
PC Software Control System The PC software can be used under the following operating system: win XP, win 7.

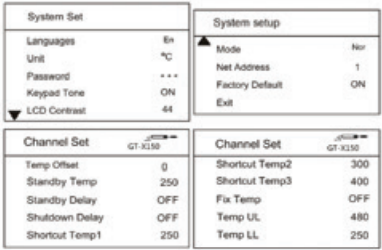

Software interface included 4 functions modules
1.Communication module: display product model, communication mode, net address, communication port, etc.
2.Parameter setting module display product parameter setting and the real-time parameter information.
3.Info tip module including errors, important operating hints, etc.
4.Real-time temperature curve display module: display real-time temperature curve of each channel and curve data of saved temperature.
| Specifications | |
|---|---|
| Input Voltage | AC 220–240V~ 50/60Hz (AC 110–120V~ 60Hz) |
| Power | 200W ±10% |
| Temperature Range | 80 °C ~ 500 °C / 176 °F ~ 932 °F |
| Temperature Compensation | ±50 °C / ±90 °F |
| Temperature Unit | °C / °F (default is °C) |
| Temperature Adjustment | Long press: quick adjustment Short press: increments of 1 unit |
| Quick Parameters | Supports customization of up to 10 sets |
| Temperature Lock | Supported |
| Electrostatic Grounding | Supported |
| USB Firmware Upgrade | Supported |
| Communication Interface | RS485 |
| Sleep Delay | Adjustable from 0 to 60 minutes (can be disabled, default is 15 minutes) |
| Language | Chinese / English |
| Display | TFT color screen |
| Operating Environment | Temperature: 0 °C ~ 40 °C Humidity: <85% RH |
| Dimensions | 230 (L) × 142 (W) × 145 (H) mm |
| Weight (Main Unit) | ≈ 3.2 kg |
