GT-5150P Multifunctional Desoldering Station
Single channel suction soldering station with LCD display.
Built-in vacuum suction pump. Max Power is 150W. Using integrated soldering tips, rapid heating. Pluggable heater design, easy to replace. Silicone buttons operate comfortable. 3 sets shortcut temperature to simplify operations. Auto standby and sleep funtion, conserves energy and protect equipment. Password-protected function to preserve settings. Compatible with GT-Y050,GT-Y130,GT-Y150 and GT-N100 handles. Built-in RS-232 communication interface, support computer control.
PC Software Control System The PC software can be used under the following operating system: win XP, win 7.
Features

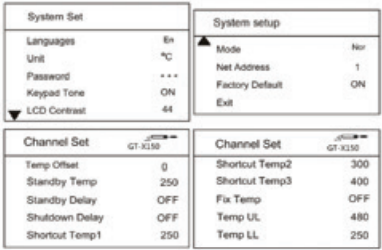

Easy temperature setting Press “ ” and “ ” key to increase/decrease temperature. Quick call short-cut temperature Short press key 1/2/3 to quickly call 1/2/3 set temperature; long press to turn it on/off. User-friendly menu enables system setting easier. Support Chinese/English, / , Password, Keypad tone, Temp offset, Standby temperature, Standby/Shutdown delay, Shortcut/Fix temp, Ceiling/Lower limit temperature setting.

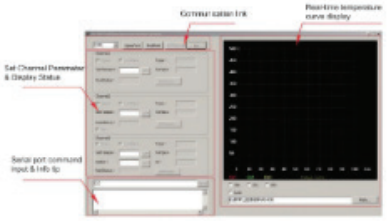

Software interface included 4 functions modules
1.Communication module: display product model, communication mode, net address, communication port, etc.
2.Parameter setting module display product parameter setting and the real-time parameter information.
3.Info tip module including errors, important operating hints, etc.
4.Real-time temperature curve display module: display real-time temperature curve of each channel and curve data of saved temperature.
| Specifications | |
|---|---|
| Input Voltage | AC 220-240V~ 50/60Hz (AC 110-120V~ 60Hz) |
| Power | 200W ±10% |
| Temperature Range | 80 ~500°C / 176 ~932°F |
| Temperature Compensation | ±50°C / ±90°F |
| Temperature Unit | °C / °F (Default is °C) |
| Temperature Adjustment Increment | Long press for quick adjustment, short press to adjust in increments of 1 unit |
| Quick Parameters | Supports customization of 10 sets of quick parameters |
| Temperature Lock | Supported |
| Electrostatic Grounding | Supported |
| USB Firmware Upgrade | Supported |
| Communication Interface | RS485 |
| Sleep Delay | Adjustable from 0 to 60 minutes (can be disabled, default is 15 minutes) |
| Language | Chinese / English |
| Display | TFT color screen |
| Operating Environment | 0 ~40°C, Humidity <85% RH |
| Dimensions | 230(L) × 142(W) × 145(H) mm |
| Weight (Main Unit) | ≈ 3.2 kg |
