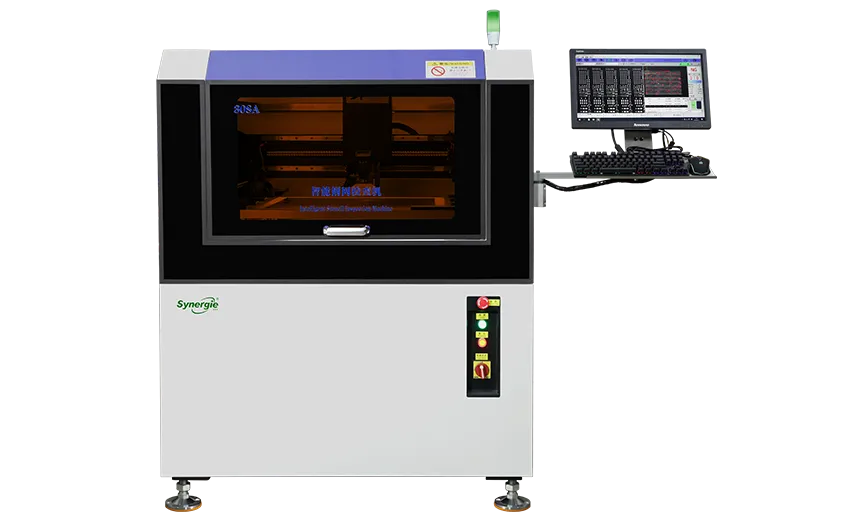

308 Series of intelligent steel mesh detection machines
High-precision visual detection camera
308A series of intelligent steel mesh detection machines, a model that is continuously developed, improved and upgraded by Shenzhen Synergies Machinery Co., Ltd. on the basis of intelligent steel mesh cleaning and testing machines.High-precision visual detection camera, scanning and taking photos on the upper and lower surfaces of steel nets, and combined with intelligent software recognition technology, this product can achieve intelligent discrimination, MES Record upload and other innovative applications are expected to be SMT The steel mesh cleaning and testing industry brings revolutionary applications.
Cleaning methods and methods
- Quick detection: Customers only need to install the steel mesh, and the system can detect it independently
- Intelligent discrimination function of unqualified products: Equipment can independently determine unqualified products
- Strong compatibility: Compatible with various steel mesh specifications on the market
- High degree of automation: Customers can put it in at once without manual intervention. The equipment can be automatically air-dryed and detected backflow
- Easy to operate: Industrial control computer control, simple software operation, no complicated training required
- High scalability: Can help customers realize the control of the entire process of testing and maintenance
| Produc Specifications | ||
|---|---|---|
| Test Specifications | Testing Purpose | Test before and after claenaing |
| Mesurement items | Opening area, position, offset, size, foreign matter, burr, plugging holes, few holes, porous,steel mesh tension | |
| Mesuremnt time | 10 Minutes (based on the opening area) | |
| Detection performance | Opening area measurement accuracy | Gage R&R<5.0% |
| Opening position measurement accuracy | 10Wei m | |
| Transmission mechanism | Repeatability ±5μm Closed-loop motor | |
| Optics | Camera | Industrial surface array camera 5mp |
| Lens | Up to 50 times, the motor drive can automatically zoom | |
| Ilumination | LED Ring light source | |
| Resolution | 13u | |
| FOV | 5x5mm | |
| Steel net | Mesh frame size | 736x736mm maximum |
| Detection range | 500x500 mm | |
| Programme method | Gerber file | Independent import gerber file |
| Computer | Brand | Industrial control machine |
| System | Windows 10 professional version 64bit | |
| Other | Power requirements | 220V |
| Gas source | 0.4-0.6Mpa | |
