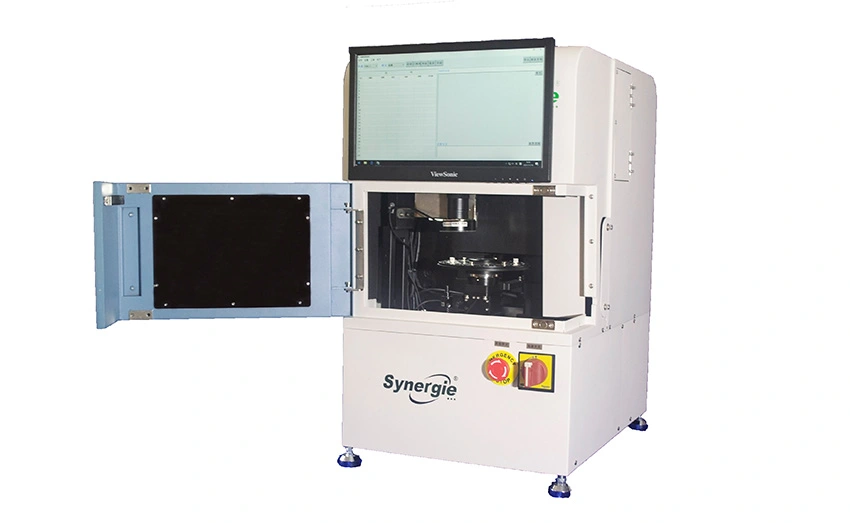

208 Nozzle detection machine series
Intelligent nozzle detection machine is a newly launched mode
Intelligent nozzle detection machine is a newly launched model that Shenzhen Synergie Company has been developed for three years. SMT A precision instrument for automatic detection of the suction nozzle of mainstream patch machines in the industry.The equipment adopts advanced optical detection technology and intelligent control software to detect the surface, inner hole and vacuum degree of different types of nozzles, thereby accurately determining the state of the nozzle, and reading the QR code, and MES The system realizes full process control of circuit board mounting online.
With consumers' demand for small and intelligent electronic products, the size of electronic components has become increasingly small. The size of the patch machine nozzle is getting closer to the limit of artificial visual inspection. Compared with traditional manual detection, the detection range of the intelligent nozzle detection machine is from 0.1 diameter. mm To 3.7 mm, help customers to reach a new level of quality control.
Key Advantages
- Surface and inner hole cleanliness detection
- Suitable for all mainstream patch machine nozzles on the market, with strong versatility
- Can be used with MES Online monitoring of all nozzle status
- You can read the QR code separately for each nozzle and save the status
- The machine determines the state of the nozzle and eliminates manual misjudgment
- The operating interface is simple and easy to use, without complex training
- Easy maintenance, no consumables cost
- SMT I have been in the automation industry for 20 years and have a strong software support team to ensure subsequent upgrades
| Especificaciones | |
|---|---|
| Applicable models | Fuji NXT Series, Global, Panasonic, Siemens and other mainstream models |
| Main testing indicators |
The vacuum degree detection of the nozzle can reach the accuracy ±100Pa； QR code reading； Surface of the nozzle: damaged, dirty, cracked； Inner wall of the suction nozzle: dirty, blocked； Reflector |
| External dimensions | 600X500X700mm |
| Weight | 30kg |
| Maximum number of detections for a single cycle | 1indivual |
| Maximum detection in a single cycle | 24Only |
| Gas source | 0.5MPa |
| Voltage | AC220V |
