Nozzle Cleaning

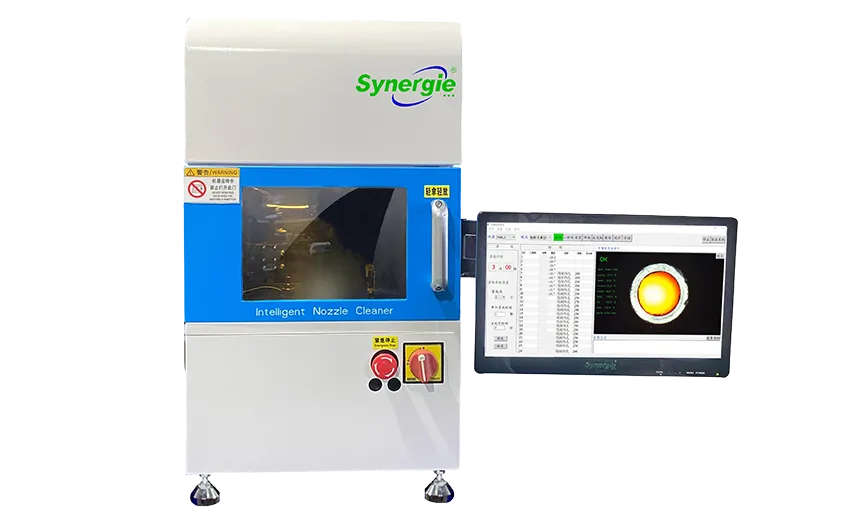

209 Intelligent cleaning and detection machine for suction nozzle

Improved and added cleaning functions based on the intelligent nozzle

209 The series of intelligent nozzle cleaning and testing machines are a model that is continuously developed, improved and added cleaning functions based on the intelligent nozzle testing machines by Shenzhen Synergie Company.This model is mainly aimed at SMT The mainstream chip machine suction nozzle in the industry can clean, detect and trace the suction nozzle.The equipment adopts advanced optical detection technology and intelligent control software to detect the surface, inner hole and vacuum degree of different types of nozzles, and can read the QR code, and MES The system is online to realize the entire process control of the suction nozzle in the circuit board mounting process.

Key Advantages

1. Cleaning nozzle Quick cleaning is achieved through customized high-speed airflow and up and down reciprocating movements. After cleaning, the suction nozzle and suction nozzle plate are dried without water droplets
2. Scan the code to trace 209 The series of cleaning and testing machines have built-in upper and lower light sources and cameras, which can effectively read the QR codes of various suction nozzles on the market, record the type and code of the suction nozzle, thereby realizing the traceability and control of the entire process of suction nozzle;
3. Breakage detection The surface cracks and damage of the suction nozzle can be effectively detected through the system camera and software comparison and analysis
4. Vacuum degree detection The system has a built-in high sensitivity sensor, which can effectively sense the changes in the airflow in the nozzle hole, determine the vacuum degree of the nozzle, and ensure quality
5. Through hole detection Through a special camera and light source, the equipment can go deep into the nozzle hole to take photos and check, ensuring that the inside of the nozzle hole is clean and damage-free
6. Easy to operate The computer is configured, the software is easy to operate, and the nozzle detection status can be checked at all times. It is easy to use and safe to use
